Stainless steel bending beam load cell

bending beam load cell bending beam load cell.jpg
down load

down load

feeding machine load cell FSH

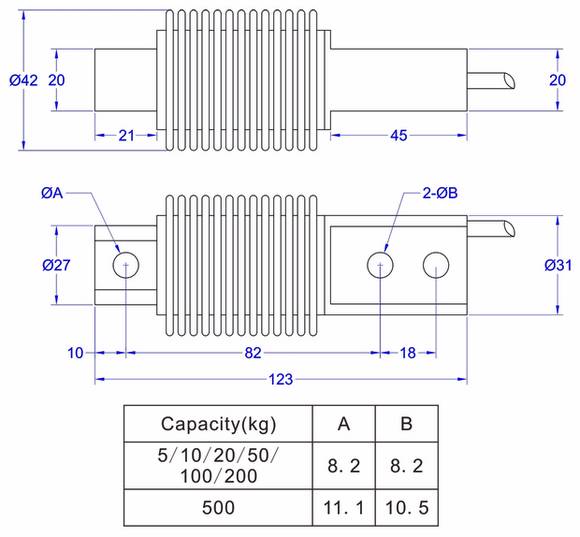

Model:                        FSH

Capacity:                    5kg~500kg on request

Material:                     Stainless steel

Load direction:           Compression/tension

Rated output:              2.0±0.01mV/V

Non-repeatability:      0.01% of R.O.

Excitation:                  5~15V

Other:                         Custom-design service

weighing load cell

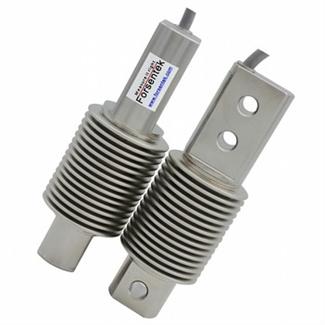

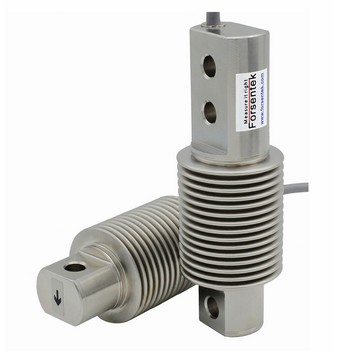

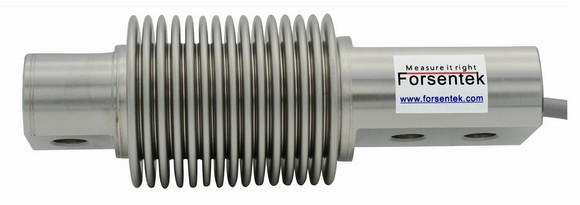

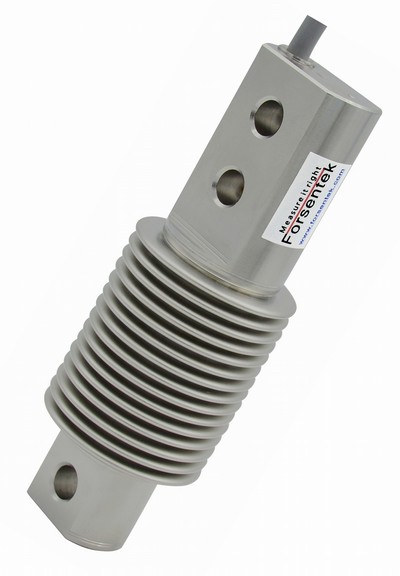

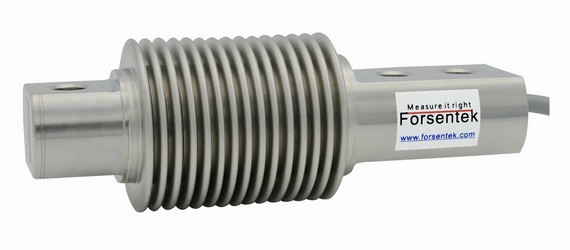

Bending beam load cell is also known as bellow type load cell.FSH is made of stainless steel,laser welding technology, hermetically sealed for IP68 protection.Strain gauge technology,6-wire connection,high accuracy,widely used for platform scales,hopper scales,batch weighing system and other industrial weighing applications.

stainless steel load cell

load cell sensor
