Load sensing transudcer load cell

load cell sensor load sensing.JPG
down load

down load

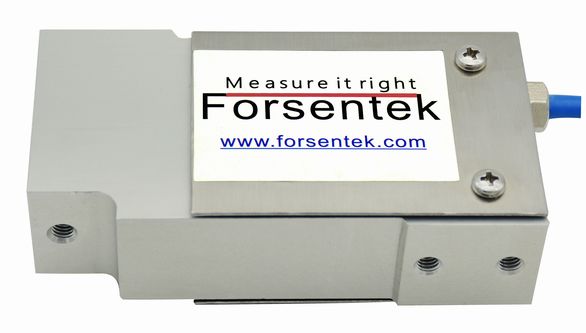

load cell sensor FNW

Model:                        FNW

Capacity:                    5~100kg

Material:                     Aluminum alloy

Load direction:           Compression

Rated output:              2.0±5%mV/V

Non-repeatability:       0.01% of R.O.

Excitation:                  5~15V

Other:                        Custom-design service

weight sensor weight measurement

Load sensing transducer FNW is made of aluminum,strain gage technology,6-wire connection,high accracy.Single point structure,easy to install.Cover plate design to protect the strain gauge bonging area.Corner trimmed for 250*250mm platform,low off-center error.Widely used for packing machine, feeding machine and other industrial weighing applications where weighing accuracy matters.
