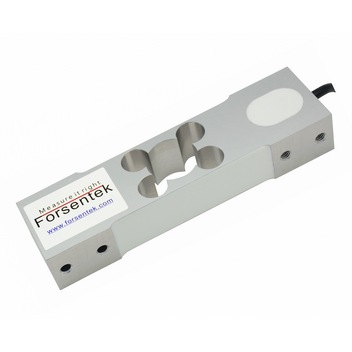

Single point load cell transducer

single point load cell load cell sensors.jpg
down load

down load

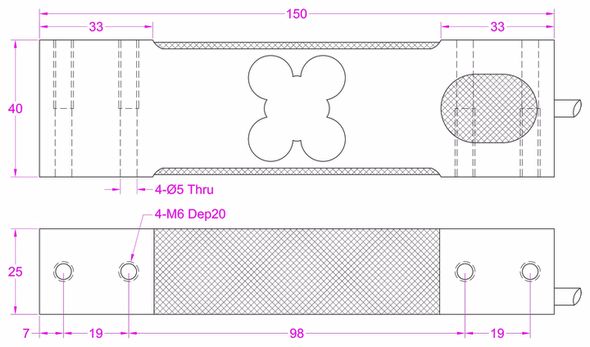

load cell FH06

Model:                        FH06

Capacity:                    25kg~200kg on request

Material:                     Aluminum alloy

Load direction:           Compression

Rated output:              2.0±5%mV/V

Non-repeatability:      0.01% of R.O.

Excitation:                  5~15V

Other:                         Custom-design service

Strain gauge load cell,analog signal output,high accuracy. Single point structure,easy to install. Corner trimmed for 400*400mm platform, low off-center error. Widely used for packing machines, bench scales,counting scales and other weighing instruments.Custom design service is available to better fit clients’ applications.
